203 Bearing Stationary Switches
Stationary Switch Replacement Parts
For repair of motors with 6203 bearings.
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
Mounting Centers |
Important Note |
List Price |
|---|---|---|---|---|---|---|---|---|---|
| S-7001 S-7001/Asset/MH.jpg | Motor Manufacturer N/A IMPERIAL | Bearing N/A 203 |
Figure Image
 AG |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |

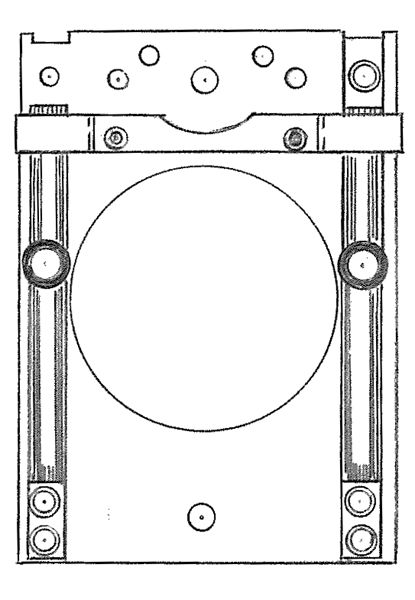

| S-7001 S-7001/Asset/FE.JPG | Motor Manufacturer N/A INSINKERATOR JACK & HEINTZ - SEE HOWELL KINGSTON CONLEY - SEE HOWELL LEAR SIEGLER-SEE HOWELL | Bearing N/A 203 |
Figure Image
 FE |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 27/32 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/AA.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/AG.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AG |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/AI.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AI |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/BO.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 BO |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/BN.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 BN |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7025 S-7025/Asset/AE.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AE |
LH Contact N/A | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $24.05 |

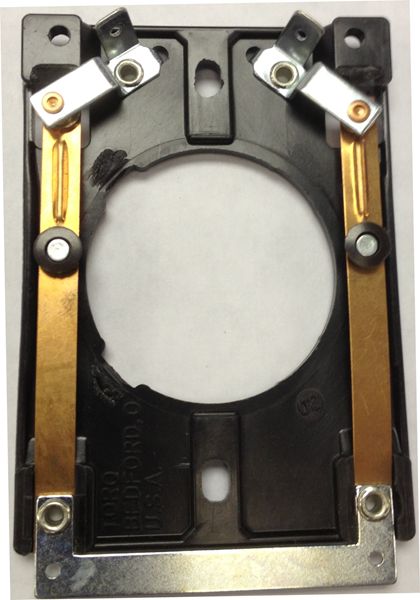

| S-7011 S-7011/Asset/AL.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AL |
LH Contact N/A N.C. | RH Contact N/A N.C. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $21.25 |
| S-7011 S-7011/Asset/AD.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AD |
LH Contact N/A N.C. | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $21.25 |
| S-7040 S-7040/Asset/AE.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AE |
LH Contact N/A | RH Contact N/A N.C. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $22.05 |
| S-7025 S-7025/Asset/AF.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
 AF |
LH Contact N/A N.O. | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $24.05 |
| S-7001 S-7001/Asset/AI.JPG | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AI |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7040 S-7040/Asset/AE.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AE |
LH Contact N/A N.O. | RH Contact N/A N.C. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $22.05 |
| S-7033 S-7033/Asset/AF.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AF |
LH Contact N/A N.O. | RH Contact N/A N.C. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in |
Important Note
N/A Reed is 0.01 thick. |
$25.50 |
| S-7033 S-7033/Asset/AF.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AF |
LH Contact N/A N.O. | RH Contact N/A D.T. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 9/16 to 2 3/4 in |
Important Note
N/A Reed is 0.013 thick. |
$25.50 |
| S-7079 S-7079/Asset/AG.jpg | Motor Manufacturer N/A LEESON | Bearing N/A 203 |
Figure Image
AG |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $29.90 |
| S-7002 S-7002/Asset/AK.JPG | Motor Manufacturer N/A LEESON LELAND/LELAND FARADAY - SEE HOWELL | Bearing N/A 203 |
Figure Image
 AK |
LH Contact N/A N.C. | RH Contact N/A D.T. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 9/16 to 2 3/4 in |
Important Note
N/A Replacement has 5/16 contacts. |
$30.55 |
| S-7001 S-7001/Asset/AA.jpg | Motor Manufacturer N/A LEROY SOMER | Bearing N/A 203 |
Figure Image
AA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7027 S-7027/Asset/AA.jpg | Motor Manufacturer N/A LEROY SOMER | Bearing N/A 203 |
Figure Image
AA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 9/16 to 2 3/4 in |
Important Note
N/A Has 5/16" contacts. |
$22.05 |
| S-7027 S-7027/Asset/AA.jpg | Motor Manufacturer N/A LOUIS ALLIS CO. | Bearing N/A 203 |
Figure Image
AA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 9/16 to 2 3/4 in |
Important Note
N/A Has 5/16" contacts. |
$22.05 |
| S-7005 S-7005/Asset/AJ.jpg | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A 203 |
Figure Image
 AJ |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | Mounting Centers N/A 2 3/4 in3 5/16 in |
Important Note
N/A Compressor duty. |
$22.95 |
| S-7077 S-7077/Asset/NY.jpg | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A 203 |
Figure Image
 NY |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 3/4 in3 5/16 in | Important Note N/A | $21.45 |
| S-7001 S-7001/Asset/BO.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 203 |
Figure Image
BO |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
| S-7001 S-7001/Asset/BO.jpg | Motor Manufacturer N/A MAGNETICS INTERNATIONAL | Bearing N/A 203 |
Figure Image
BO |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | Mounting Centers N/A 2 9/16 to 2 3/4 in | Important Note N/A | $16.95 |
