203 Bearing Stationary Switches
Stationary Switch Replacement Parts
For repair of motors with 6203 bearings.
Unit of Measure
Items |
S-7001 203 Bearing Stationary Switches List Price $14.95
|
S-7069 203 Bearing Stationary Switches List Price $21.21
|
S-7040 203 Bearing Stationary Switches List Price $21.27
|
S-7001 203 Bearing Stationary Switches List Price $14.95
|
S-7001 203 Bearing Stationary Switches List Price $14.95
|
|||||
Motor Manufacturer | N/A A.O. SMITH | N/A A.O. SMITH | N/A A.O. SMITH | N/A AQUA VAC | N/A ASHLAND | |||||
Manufacturer Part Number | N/A 609290-1 | N/A 610660-1 | N/A 611586-1 | N/A 4172A | N/A 6764-2 | |||||
Bearing | N/A 203 | |||||||||
Figure Image |
N/A
BO |
N/A
FS |
N/A
AE |
N/A
BO |
N/A
BO |
|||||
Replaced By |
N/A

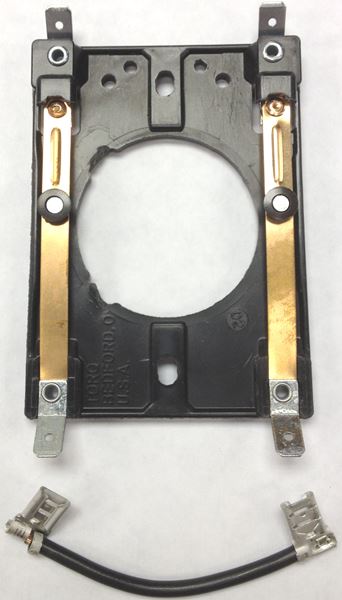

FIG. AH S-7001 |
N/A
|
N/A
|
N/A
FIG. AH S-7001 |
N/A
FIG. AH S-7001 |
|||||
Figure | N/A BO | N/A FS | N/A AE | N/A BO | N/A BO | |||||
LH Contact | N/A | N/A N.O. | N/A N.O. | N/A | N/A | |||||
RH Contact | N/A N.O. | N/A N.O. | N/A N.C. | N/A N.O. | N/A N.O. | |||||
Contact Diameter | N/A 1/4 in | N/A | N/A 1/4 in | N/A 1/4 in | N/A 1/4 in | |||||
# of Sets | N/A 1 | N/A 2 | N/A 2 | N/A 1 | N/A 1 | |||||
Jumper | N/A No | N/A Bottom | N/A No | N/A No | N/A No | |||||
Mounting Centers | N/A 2 9/16 to 2 3/4 in | N/A 2 in2 3/4 in | N/A 2 9/16 to 2 3/4 in | N/A 2 9/16 to 2 3/4 in | N/A 2 9/16 to 2 3/4 in | |||||
Hole Diameter | N/A 1 11/16 in | |||||||||
Button Centers | N/A 2 in | |||||||||
Length x Width | N/A 3 7/16 x 2 1/2 in | N/A 3 7/16 x 2 3/8 in | N/A 3 7/16 x 2 1/2 in | N/A 3 7/16 x 2 1/2 in | N/A 3 7/16 x 2 1/2 in | |||||
Important Note | N/A May look like figure BN or BL. | N/A | N/A | N/A | N/A | |||||
|
