Single Arm and Other Stationary Switches
Stationary Switch Replacement Parts
For repair of motors which utilize a single-arm stationary switch.
1 2
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
# of Sets |
Mounting Centers |
Important Note |
List Price |
---|---|---|---|---|---|---|---|---|---|---|

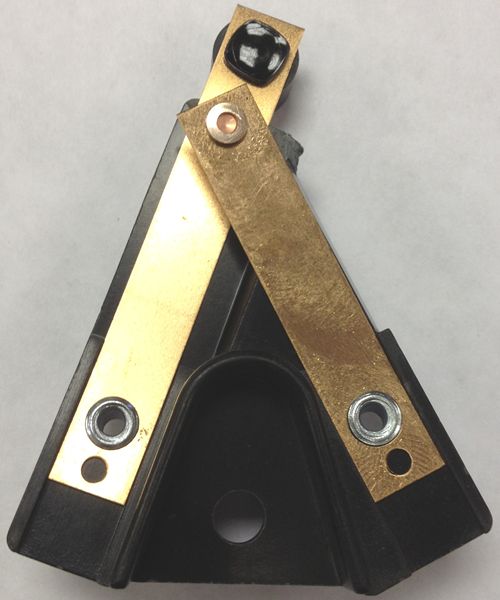

S-7076 | Motor Manufacturer N/A STA Rite (A.O. Smith) | Bearing N/A SA |
Figure Image
NB |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in2 3/8 in | Important Note N/A Terminals are on opposite side of board from standard A.O.SMITH 614234-001. | $12.74 |
S-7060 | Motor Manufacturer N/A A.O. SMITH | Bearing N/A SA |
Figure Image
BG |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in2 3/8 in | Important Note N/A Replaced by torq 36C12700. | $11.75 |
S-8014 | Motor Manufacturer N/A BALDOR | Bearing N/A |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $19.71 |

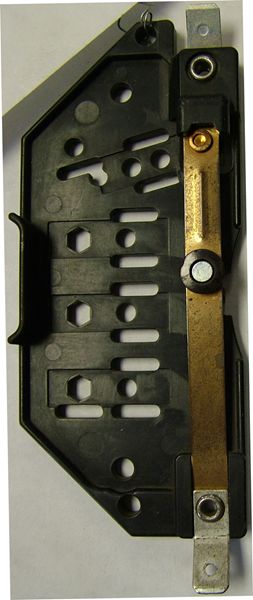

S-7115 | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
BT |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $15.28 |
S-7116 | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
BU |
LH Contact N/A | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $17.58 |

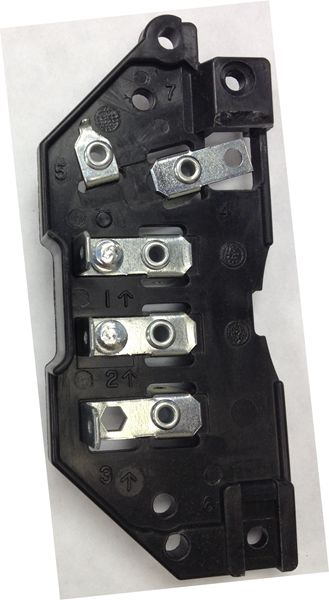

S-7121 | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
NR |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $19.66 |
S-7122 | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
NS |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $18.88 |
S-7117 | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
BV |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $15.27 |
S-8024 | Motor Manufacturer N/A CENTURY | Bearing N/A SA |
Figure Image
NE |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 15/16 in2 3/4 in3 3/8 in | Important Note N/A | $31.15 |
S-8005 | Motor Manufacturer N/A DAYTON | Bearing N/A SA |
Figure Image
AZ |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 3 in | Important Note N/A | $23.66 |

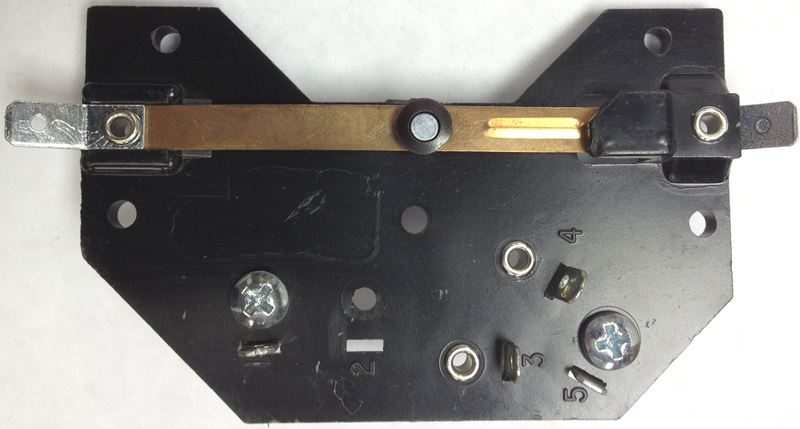

S-7026 | Motor Manufacturer N/A DAYTON | Bearing N/A SA |
Figure Image
BD |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 3/16 in | Important Note N/A | $26.73 |
S-6018-OBSOLETE | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
BS |
LH Contact N/A N.C. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 9/16 in | Important Note N/A OBSOLETE | $0.00 |

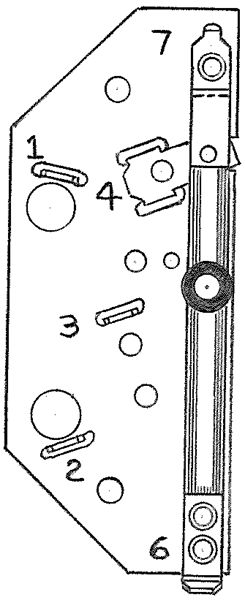

S-7078 | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A 0 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $18.28 |
S-7057 | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $22.72 |
S-7057 | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $22.72 |
S-7063 | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $24.80 |
S-7057 | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $22.72 |
S-7003 | Motor Manufacturer N/A FLINT & WALLING | Bearing N/A SA |
Figure Image
PD |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 5/8 in | Important Note N/A Yoke type. | $18.31 |

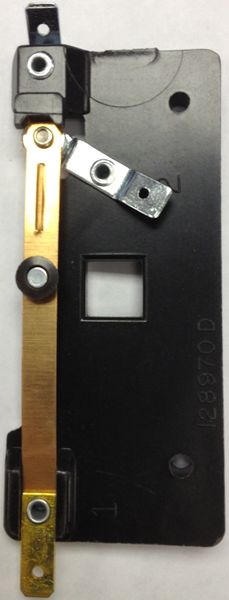

S-7004 | Motor Manufacturer N/A FLINT & WALLING | Bearing N/A SA |
Figure Image
BB |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 2 5/8 in | Important Note N/A Reed type. | $15.48 |
S-7006 | Motor Manufacturer N/A HOWELL | Bearing N/A SA |
Figure Image
FZ |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in | Important Note N/A Yoke type. | $18.10 |
S-7009 | Motor Manufacturer N/A HOWELL | Bearing N/A SA |
Figure Image
FG |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in | Important Note N/A Yoke type. | $18.41 |
S-8014 | Motor Manufacturer N/A LEESON | Bearing N/A SA |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $19.71 |

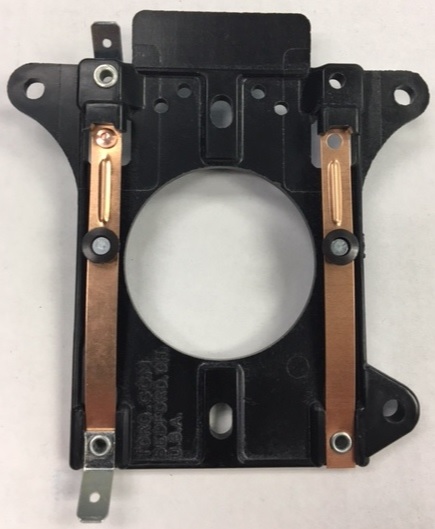

S-7077 | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A 203 |
Figure Image
NY |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 5/16 in | Important Note N/A | $19.22 |
S-8014 | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $19.71 |
S-7100 | Motor Manufacturer N/A RELIANCE ELECTRIC | Bearing N/A SA |
Figure Image
MR.F |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in3 1/4 in | Important Note N/A | $27.00 |
