Single Arm and Other Stationary Switches
Stationary Switch Replacement Parts
For repair of motors which utilize a single-arm stationary switch.
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
# of Sets |
Mounting Centers |
Important Note |
List Price |
|---|---|---|---|---|---|---|---|---|---|---|
| S-7022 S-7022/Asset/MP.JPG | Motor Manufacturer N/A RELIANCE ELECTRIC | Bearing N/A SA |
Figure Image
 MP |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 3 11/16 in | Important Note N/A | $19.30 |
| S-7059 S-7059/Asset/BA.jpg | Motor Manufacturer N/A SAUDI PUMPS | Bearing N/A SA |
Figure Image
 BA |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 3/16 in | Important Note N/A | $24.99 |
| S-8014 S-8014/Asset/BA.jpg | Motor Manufacturer N/A SHIN MYUNG STA RITE - SEE A.O. SMITH | Bearing N/A SA |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $20.75 |
| S-7060 S-7060/Asset/a1233.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A SA |
Figure Image
 BG |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A |
Important Note
N/A Replaces A.O. SMITH 614234-001. |
$13.25 |
| S-7076 S-7076/Asset/NB.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A SA |
Figure Image
 NB |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A |
Important Note
N/A Replaces Aces Rite 12980 (A.O.SMITH). |
$15.52 |

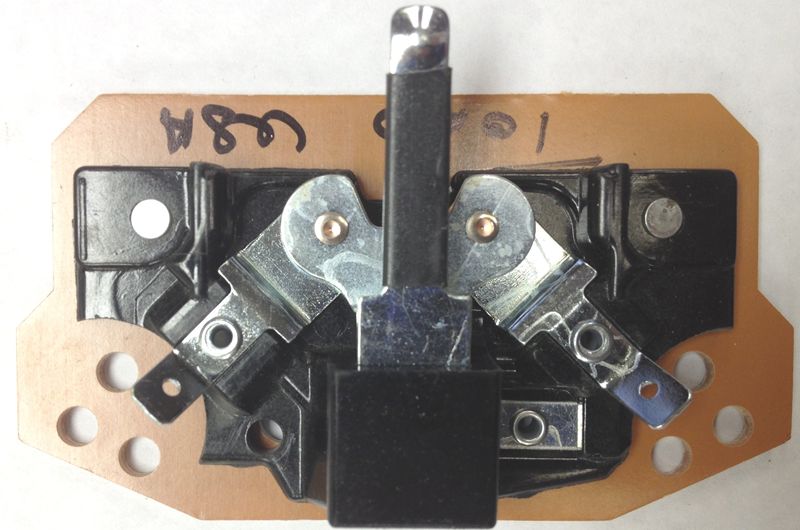

| S-8024 S-8024/Asset/BF.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A SA |
Figure Image
 BF |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 15/16 in2 3/4 in3 3/8 in |
Important Note
N/A Replaces Century CN-1-33597650. |
$32.15 |

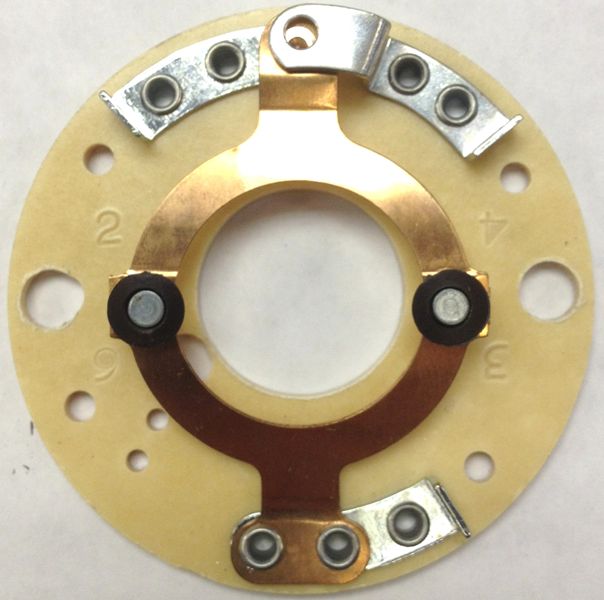

| S-6013 S-6013/Asset/BI.jpg | Motor Manufacturer N/A TORQ CORPORATION | Bearing N/A 202 |
Figure Image
 BI |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 2 1/8 in |
Important Note
N/A Replaces Chinese made: jin-chin, chen-chiang, toshiba, jet woodworking tools, grizzly, tzu-liang. |
$20.65 |

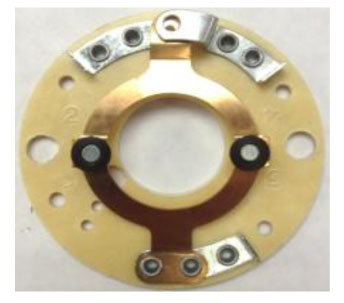

| S-6014 S-6014/Asset/a1241.jpg | Motor Manufacturer N/A EASTMAN | Bearing N/A 202 |
Figure Image
 BP |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 2 in |
Important Note
N/A Replaces Eastman 580C1-70. |
$21.30 |

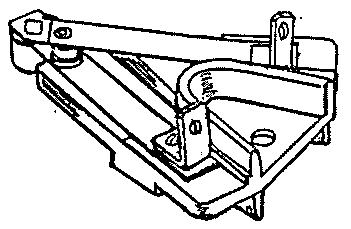

| S-7076 S-7076/Asset/BD.JPG | Motor Manufacturer N/A U.S. ELECTRICAL MOTORS | Bearing N/A SA |
Figure Image
 BD |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 3/16 in |
Important Note
N/A Terminals only at ends of reeds. |
$15.52 |

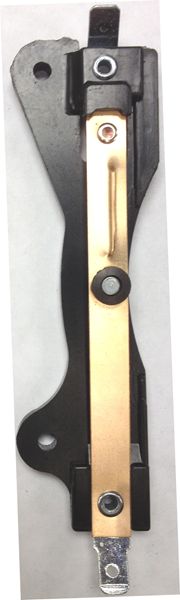

| S-8004 S-8004/Asset/BC.jpg | Motor Manufacturer N/A U.S. ELECTRICAL MOTORS | Bearing N/A SA |
Figure Image
 BC |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 3 in | Important Note N/A | $22.31 |
| S-8005 S-8005/Asset/AZ.jpg | Motor Manufacturer N/A U.S. ELECTRICAL MOTORS | Bearing N/A SA |
Figure Image
 AZ |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 3 in | Important Note N/A | $24.15 |

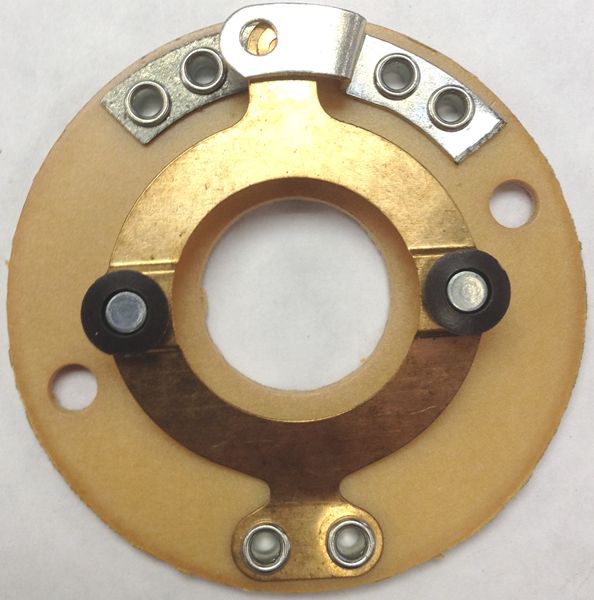

| S-6015-OBSOLETE, NO REPLACEMENT S-6015-OBSOLETE, NO REPLACEMENT/Asset/BR.jpg | Motor Manufacturer N/A WOLF MACHINE | Bearing N/A 202 |
Figure Image
 BR |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A | # of Sets N/A | Mounting Centers N/A | Important Note N/A | $0.00 |

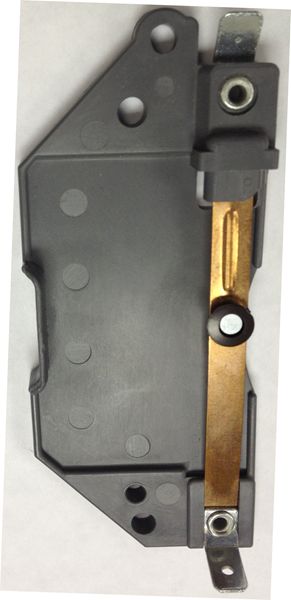

| S-7128 S-7128/Asset/BY.jpg | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 BY |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $17.50 |
| S-6022 S-6022/Asset/PA.jpg | Motor Manufacturer N/A REGAL-JAKEL | Bearing N/A 202 |
Figure Image
 PA |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2.875 in |
Important Note
N/A Replaces Eastman 580C1-70. |
$15.55 |
